GYTC8S Armored Outdoor Figure 8 Self Supporting Fiber Optic Cable Single Mode Multi Mode Outdoor Fiber Cable

Brand Name : Fiberplan

Model Number : GYTC8S

Certification : ISO 9001; TÜV certificate

Place of Origin : China

MOQ : 1Km

Price : Negotiation

Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 km per month

Delivery Time : 5~8 work days

Packaging Details : Wooden Drum

Application : Outdoor installation

Fiber type : G652B, G652D, G657A1, G657A2, 62.5/125, 50/125

Color : Black/Customized

Jacket material : PE,LSZH,PVC,TPU,LSZH OR PVC

Installation : Burial/aerial/duct

Operating temperature : -40~75

Length : Standard length of cable shall be 2 km. Other cable length is also availabler

Direct Burial Rated : Yes

Manufacturer : Yes

Water Blcoking System : Filling compound

Armored Material : Galvanized steel

Operating Temperature : -40°C ~ +70°C

Central Strength Member : steel wire

Loose Tube : PBT

Cable Diamter : 6-9 mm

Temperature Rating : -40°C to 90°C

Fiber Count : 2-288 core

Armor Material : Corrugated Steel Tape

Contact Now

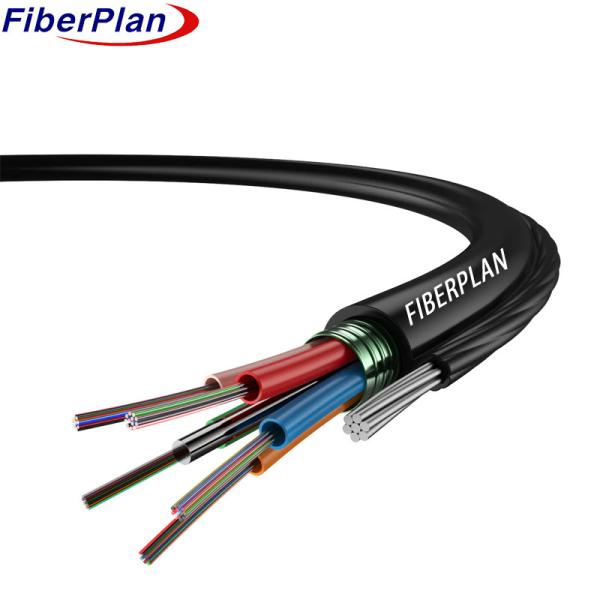

GYTC8S Armored Outdoor Figure 8 Self-Supporting Fiber Optic Cable

Description

The 250μm fibers are enclosed within high modulus plastic loose tubes filled with a water-resistant

compound, ensuring compactness and longitudinal water blocking. These tubes are wrapped in

aluminum tape for added protection. Together with support wires, they are encased in a polyethylene

sheath, forming a figure 8 structure.

Application

1. Engineered for outdoor distribution, ensuring durability in diverse environments.
2. Supports versatile installation methods, including aerial setups and pipeline laying.
3. Facilitates both long-distance and local area network communication needs.

Characteristics

1. Non-metal strength components provide excellent anti-electromagnetic capabilities.
2. Loose tube design ensures optimal performance and fiber protection.
3. Exhibits outstanding mechanical and environmental resilience.
4. Demonstrates good flexibility and bending capabilities.
5. Features a small outer diameter and lightweight construction, facilitating easy installation.
6. Cable core is entirely filled for maximum protection against moisture and contaminants.
7. Aluminum tape acts as a moisture barrier, enhancing the cable's durability.

Cable construction details

No. of fibers 6 12 24 48 72 96 144
No. of tubes 1 2 4 4 6 8 12
fibers per tube 6 6 6 12 12 12 12
Filler Rod 4 3 1 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Outer diameter (±0.5mm) 5.4X8.6
-15.0		 5.4X8.6
-15.0		 5.4X8.6
-15.0		 5.4X9.8
-16.5		 5.4X10.8
-17.5		 5.4X12.2
-19.0		 5.4X14.9
-22.0
Thickness of out diameter
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color standard spectrum
Water blocking
system		 Material Filling gel / Water blocking tape
Central strength
member		 Material FRP Diameter 1.4(6-48)
2.0(72-144)
Mental strength
member		 Material Stranded steel wire Type 1.0mm*7
Armor Material Aluminum tape
Gallus Material PE Size
(h*w)		 2.5*1.5mm
Out sheath Material PE Color Black

Cable mechanical and environment chararcteristics

Tensile strength Long term(N) 3000N
Short term(N) 7000N
Crush load Long term(N) 300N/100mm
Short term(N) 1000N/100mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃～+60℃
Storage Temperature -40℃～+70℃

Fiber characteristics

Fiber type Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.24 ≤3.0/1.5 ≤3.0/1.5
Cladding diameter um 125±1 125±1 125±1
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±7 242±7 242±7

GYTC8S Armored Outdoor Figure 8 Self Supporting Fiber Optic Cable Single Mode Multi Mode Outdoor Fiber Cable

GYTC8S Armored Outdoor Figure 8 Self Supporting Fiber Optic Cable Single Mode Multi Mode Outdoor Fiber Cable

GYTC8S Armored Outdoor Figure 8 Self Supporting Fiber Optic Cable Single Mode Multi Mode Outdoor Fiber Cable
