Outdoor Distribution Long-Distance & Local Area Networks Durable & Resilient GYXTS
Description

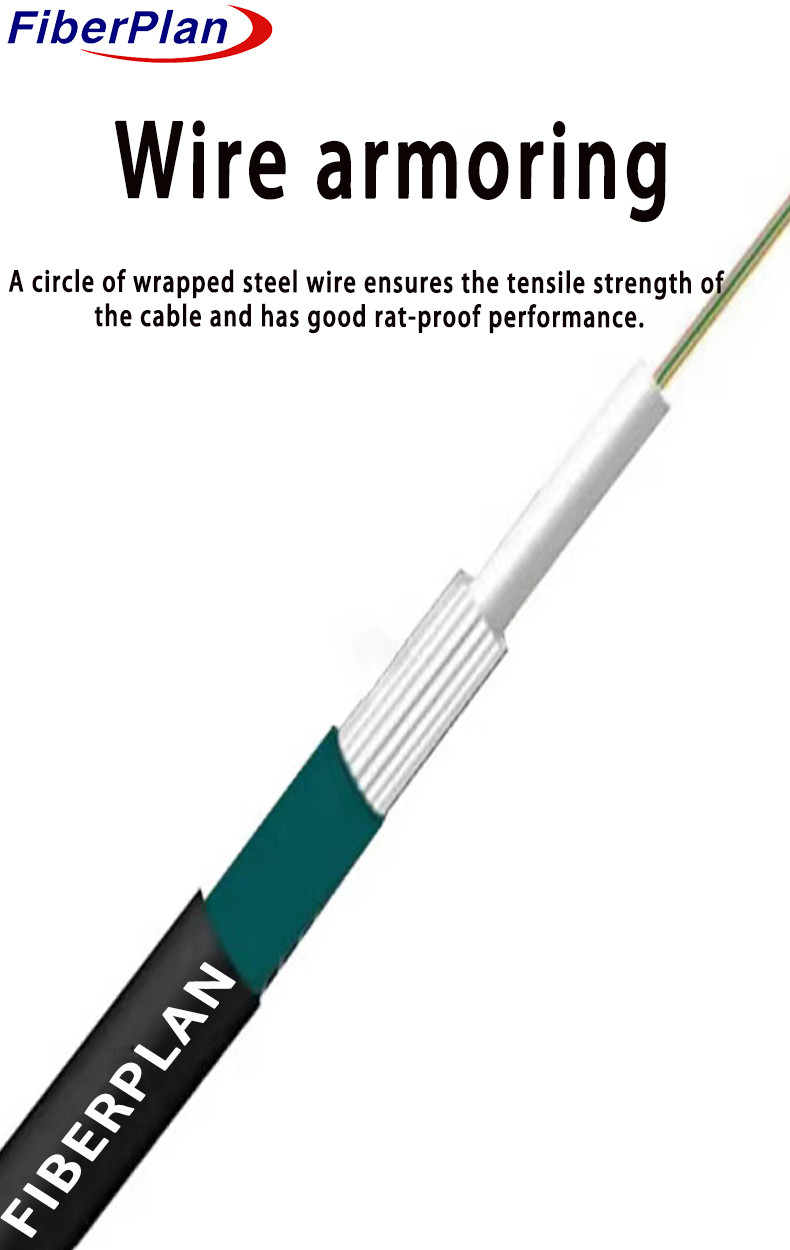

The cable design encapsulates optical fibers in flexible plastic tubes filled with a waterproof compound. These
tubes are reinforced with water-blocking glass yarn and wrapped in corrugated steel tape. Additionally, the ca-
ble is equipped with rip cords for accessibility and boasts a sturdy exterior layer of High-Density Polyethylene
(HDPE) for enhanced strength and durability.
Application
1 Outdoor Adaptability: Tailored for outdoor distribution, ensuring consistent performance in various weather
conditions.
2 Versatile Installation: Well-suited for aerial and pipeline installations, offering flexibility for diverse deployment
scenarios.
3 Communication Versatility: Capable of accommodating both long-distance and local area network setups,
catering to a wide range of networking requirements across varying distances.
Characteristic
1 Mechanical & Temperature Reliability: Demonstrates consistent performance under varying temperatures
and mechanical pressures, ensuring dependability.
2 Hydrolysis-Resistant High-Strength Tube: Offers robustness and resists hydrolysis, allowing prolonged use
even in damp conditions.
3 Critical Fiber Protection: Utilizes specialized compounds within the tube to safeguard enclosed fibers, ensuring
vital protection.
4 Crush Resistance & Flexibility: Balances resistance to pressure with flexibility, enabling versatile installation
methods.
5 UV Protection with PE Sheath: Preserves cable integrity by shielding against ultraviolet radiation with a PE
sheath.
6 Comprehensive Filling Design: Ensures thorough environmental protection throughout the cable by employing
filling compounds in both the loose tube and cable core.
Structure details
| Fiber count | 6-24C |
| Loose tube | Material | PBT | Color | white |
| Diameter | 2.9±0.03mm (6-12C) | Thickness | 0.4±0.03mm (6-12C) |
| 3.5±0.03mm (24C) | 0.5±0.02mm (24C) |
| Yarn | Material | water blocking glass yarn | Qty | 20 strands |
| Rip cords | Qty | (1110*2)*2 | Color | White |
| Armor | Material | Corrugated steel tape | Diameter | 0.21*20mm |
| Out sheath | Material | HDPE | Color | Black |
| Diameter | 7.4±0.3mm (6-12C) | Thickness | 1.1±1.3mm (6-12C) |
| 8.5±0.1mm (24C) | 1.4±0.2mm (24C) |
| Net weight | 48±3kg/km |
Mechanical and environment performance
| Tensile strength | Max. | 2000N |
| Crush load | Max. | 2000N/100mm |
| Bending radius | Dynamic | 20D |
| Static | 10D |
| Storage temperature | -50℃～+70℃ |
| Operating temperature | -40℃～+70℃ |
Fiber characteristics
