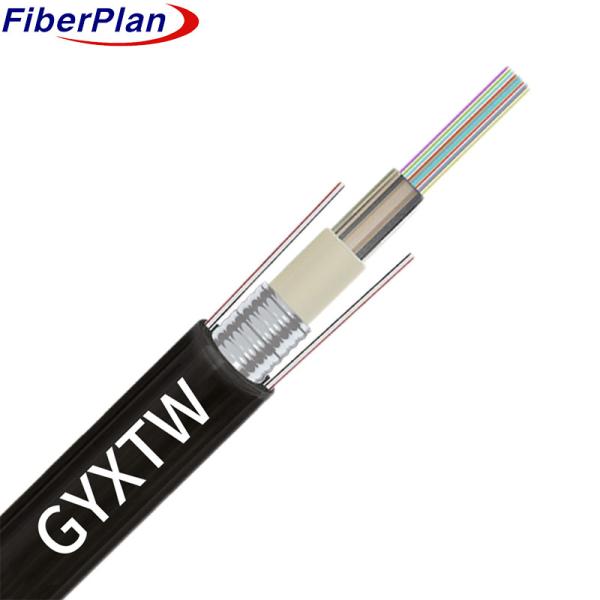

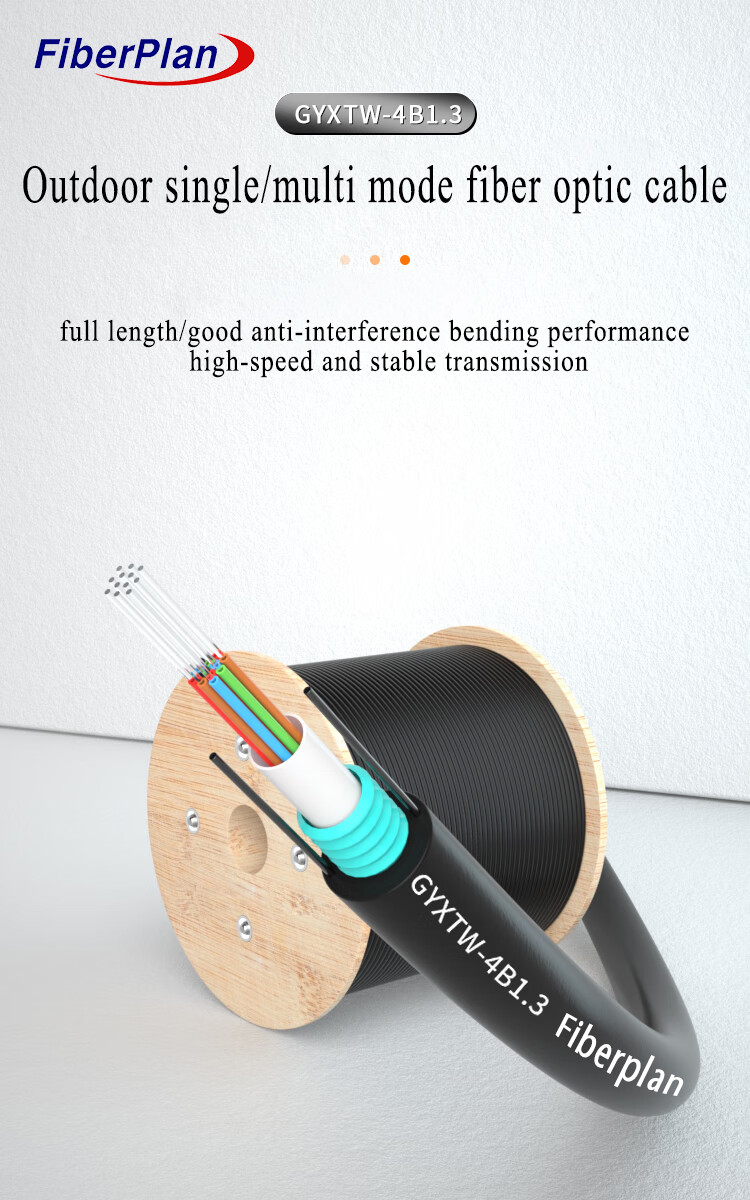

Outdoor Armored GYXTW G652D Singlemode 6 To 24 Core Fiber Optic Cable
Description

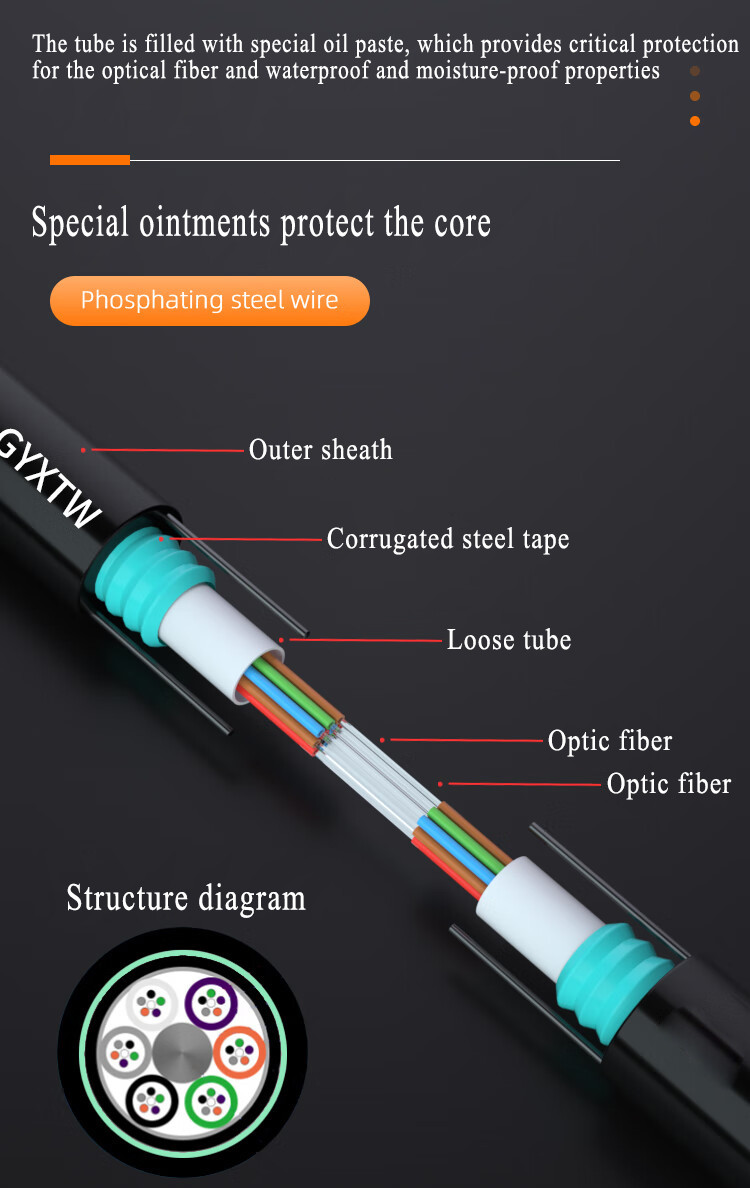

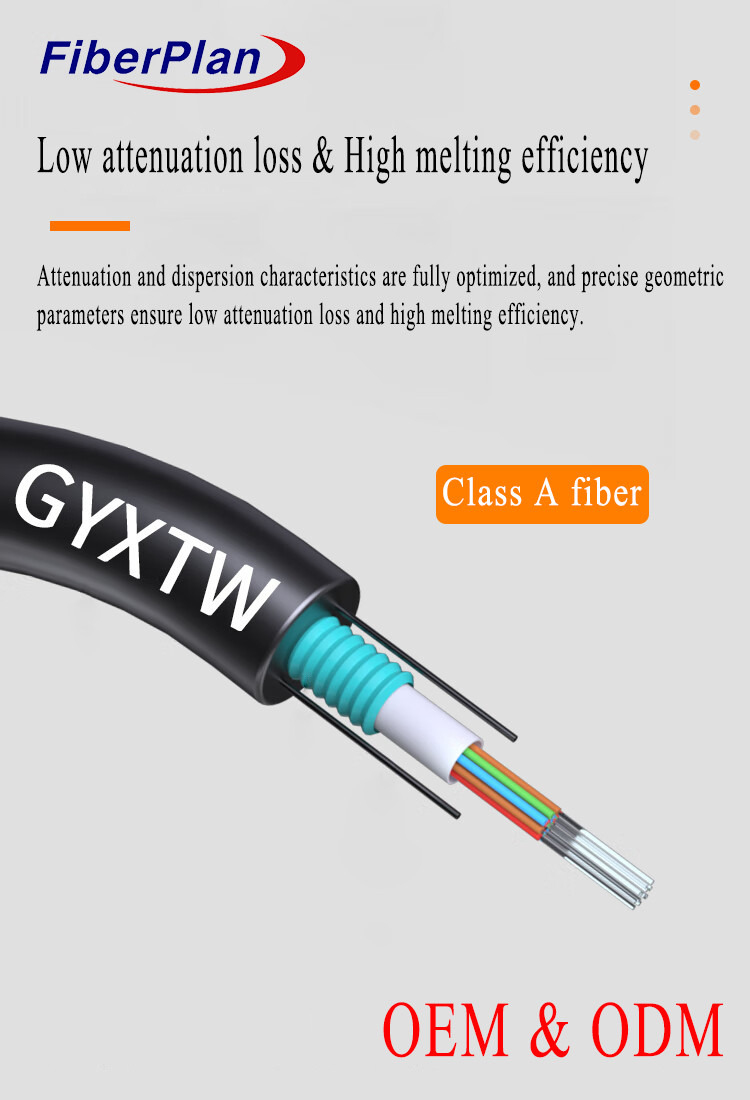

The cable employs high modulus plastic tubes to house the fibers, fortified with a water-resistant compound.
These tubes are enclosed in corrugated steel tape, sealed with water-blocking material to maintain a compact
and waterproof structure. Parallel steel wires reinforce the tape. The cable is completed with a protective poly-
ethylene (PE) sheath, ensuring overall environmental resilience.
Application
This specification outlines fundamental requirements for a Central Loose Tube Outdoor Cable designed speci-
fically for aerial or duct installations.
Characteristics
1 Temperature-Resilient Construction: Ensures consistent performance across diverse environmental temper-
atures, featuring robust mechanical resilience.
2 Fiber Protection: Critical shielding for fibers is provided by a hydrolysis-resistant, high-strength loose tube
and specialized filling compound.
3 Combined Strength and Flexibility: Dual parallel steel wires offer a balance between crush resistance and
flexibility, enhancing tensile strength for long-term reliability.
4 Effortless Installation: Engineered with a compact, lightweight design, ensuring easy and adaptable installations
across various applications for user-friendly deployment.
Cable construction details
| Number of fiber | 0~24core |
| Loose tube | material | PBT |
| diameter | Ф2.2(outer/inner) |
| Tube-filling | Tube filling compound |
| Steel wire | size | 0.9mm |
| Number | 2 |
| Outer sheath | material | PE,HDPE,LDPE |
| diameter | 8±0.2mm |
Fiber color
| Number of fiber 8 cores per tube | 1 | 2 | 3 | 4 | 5 | 6 |
| Blue | Orange | Green | Brown | Grey | White |
| 7 | 8 | 9 | 10 | 11 | 12 |
| Red | Black | Yellow | Violet | Pink | Aqua |
| Color 13~24 will be marked with a black tracer.For black color no need marked black tracer, will use nature color instead. |
Cable Mechanical characteristic
| core | Cable diameter | weight |
| 1~24 | 8.0mm±0.4mm | 65kg/km±3kg |
| Temperature range | -40 ~ +70 | ----- |
| Min Bending Radius (mm) | Long term | 10D |
Min Bending
Radius (mm) | Short term | 20D |
Min allowable
Tensile Strength (N) | Long term | 1200 |
Min allowable
Tensile Strength (N) | Short term | 1500 |
Operation
temperature (℃) | -40 ~ +70 |
Installation
temperature (℃) | -20 ~ +60 |
| Storage temprature (℃) | -40 ~ +70 |
Fiber characteristic
| Fiber style | Unit | SM
G652 | SM
G652D | MM
50/125 | MM
62.5/125 | MM
OM3-300 |
| condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 |
| attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 |
| 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- |
| Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion |
| 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | |
| Bandwith | 850nm | MHZ.KM | ---- | ---- | ≧400 | ≧160 | Bandwith |
| 1300nm | MHZ.KM | ---- | ---- | ≧800 | ≧500 | |
| Zero dispersion wavelength | nm | 1300-1324 | ≧1302,
≤1322 | ---- | ---- | ≧ 1295,
≤1320 |
| Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- |
| PMD Maximum Individual Fibr | | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 |
| PMD Design Link Value | Ps(nm2*km) | ≤0.12 | ≤0.08 | ---- | ---- | ---- |
| Fibre cutoff wavelength λc | nm | ≧ 1180,
≤1330 | ≧1180,
≤1330 | ---- | ---- | ---- |
Cable sutoff
wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- |
| MFD | 1310nm | um | 9.2±0.4 | 9.2±0.4 | ---- | ---- | ---- |
| 1550nm | um | 10.4±0.8 | 10.4±0.8 | ---- | ---- | ---- |
Numerical
Aperture(NA) | | ---- | ---- | 0.200±0.015 | 0.275±0.
015 | 0.200±0
.015 |
Step(mean of bidirectional
measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
Irregularities over fiber
length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 |
| Dicontinuity |
Difference backscatter
coefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 |
| Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | | | |
| Core dimater | um | | | 50±0.3 | 62.5±2.3 | 50±0.3 |
| Cladding diameter | um | 125.0±0.3 | 125.0±0.3 | 125.0±0.3 | 125.0±0.3 | 125.0±0.3 |
| Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 |
| Coating diameter | um | 242±4 | 242±3 | 242±3 | 242±4 | 242±4 |
Coating/chaffinch
concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 |
| Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 |
| Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 |
| Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- |
