High Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 2-24 Core

Name: High Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 224 Core
Brand: Fiberplan
Price: 1 USD

Brand Name : Fiberplan

Model Number : GYXTW53

Certification : ISO 9001; TÜV certificate

Place of Origin : China

MOQ : 1Km

Price : Negotiation

Payment Terms : L/C, L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability : 5000 km per month

Delivery Time : 5~8 work days

Packaging Details : Wooden Drum

Fiber type : G652B, G652D, G657A1, G657A2

Jacket material : PE,LSZH,PVC,TPU,LSZH or PVC

Installation : Burial/aerial/duct

Fiber Count : 2-24 fibers

Cable Diameter : 8.0~10.0mm

Operating Temperature : -40°C ~ +70°C

Length : 3Km or Custom

Structure : Central loose tube

Central Strength Member : steel wire

Armored Material : steel wire

Crush Resistance : 3000N/100mm

Tensile Strength : 1000N

Application : Outdoor use, suitable for direct burial installation

Direct Burial Rated : Yes

Contact Now

High Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 2-24 Core

Description

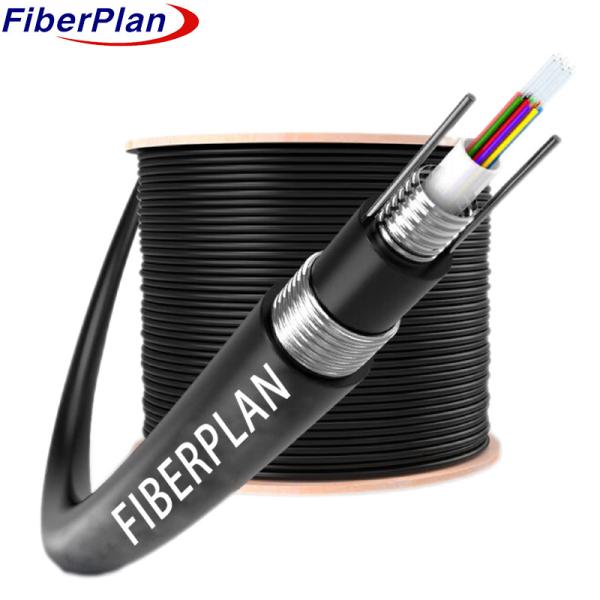

The cable contains fibers housed within a flexible tube made of sturdy plastic, fortified for strength. This tube

is filled with a water-resistant compound to shield the fibers. Surrounding this tube is a corrugated steel tape

layer, safeguarded by a water-blocking material to maintain the cable's tight, compact structure. Two steel

wires run parallel to this tape, and the entire assembly is protected by a polyethylene (PE) sheath, ensuring

overall durability.

Application

1 Tailored for outdoor deployment, resilient to various conditions.

2 Compatible with aerial, duct, and buried installations.

3 Facilitates long-distance and local network communication efficiently.

Characteristic

1 Features steel-wire parallel members and filler for protection alongside tube fibers and steel tape

armoring.

2 Demonstrates outstanding mechanical resilience and environmental durability.

3 Compact and lightweight in structure.

4 Offers convenient installation and straightforward operation.

Cable Construction Details

Fiber count	2C-24C
Strength member	Material	steel wire	Diameter	0.8mm
Loose Tube	Material	PBT	Diameter	2-16core	2.2mm
				18-24core	2.8mm
Tube-filling	Mateial	Filling compound
Water blocking system	Mateial	water blocking tape
Inner sheath	Material	MDPE	Color	Black
	Diameter	7.5±0.2mm	Thickness	1.3±0.1mm
Outer Sheath	Material	MDPE	Color	Black
	Diameter	12.2±0.4mm	Thickness	1.5±0.2mm

Cable mechanical and environment chararcteristics

Tensile strength	Long term(N)	600N
	Short term(N)	1500N
Crush load	Long term(N)	500N/mm
	Short term(N)	1500N/mm
Bending radius	Dynamic	20D
	Static	10D
Installation Temperature	-10℃～+60℃
Storage Temperature	-40℃～+70℃

Fiber characteristics

Fiber style	Unit	SM G652D	MM 50/125	MM 62.5/125
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.36/0.23	≤3.0/1.0	≤3.0/1.0
Cladding diameter	um	125±0.5	125±0.5	125±0.5
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0
Coating diameter	um	242±5	242±5	242±5
